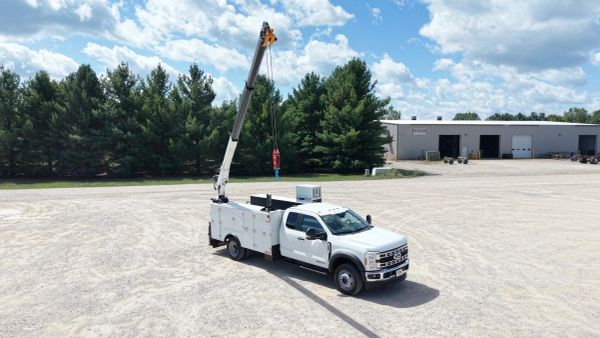

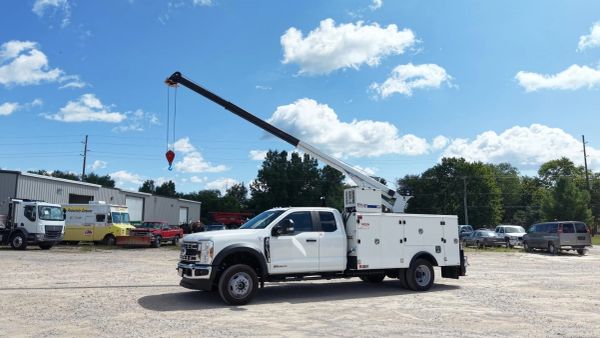

2026 Ford F-550 4x4 Mechanics Truck – Stellar TMAX 1-11

---

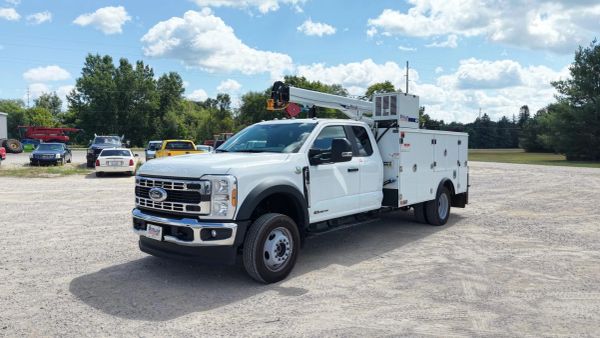

2026 Ford F-550 4x4 Super Cab w/ TMAX 1-11 Mechanics Body & 8630 Crane Multiple Units available

19,550# GVW | 6.7L Power Stroke Diesel | Stellar TMAX 1-11 Service Body | 53,100 ft-lb Crane | 40 CFM Air Compressor

Fully equipped mechanics/service truck built for heavy-duty fieldwork. This F-550 pairs Ford's proven 6.7L Power Stroke platform with a premium Stellar TMAX 1-11 body, an 8,600 lb capacity hydraulic crane, and a 40 CFM air compressor system — ready to go to work.

Chassis Specs

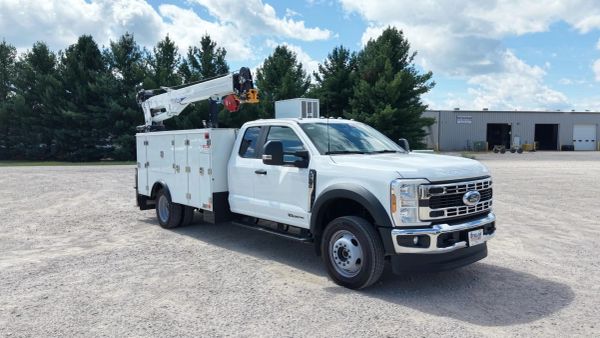

2026 Ford F-550, 4x4, Super Cab

84" CA / 192" WB

19,550# GVW

6.7L Power Stroke Diesel Engine

Automatic Transmission

XL Trim, VIS

Air Conditioning, Cruise Control, Tilt Wheel

AM/FM w/ SYNC

Power Group

Backup Camera

40/20/40 Vinyl Seat

Cab Steps

Stellar TMAX 1-11 Mechanics Body

Aluminum side packs & doors, 52" compartment height

Isolated steel crane compartment w/ torsion box understructure

8" drop well (Curbside 1st Vertical) for Oxy/Acet bottles

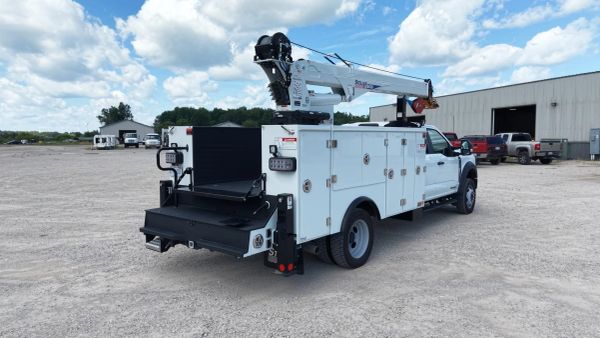

21" work bench bumper w/ thru compartment, flush front bulkhead

133" body length

Stainless steel billet-style hinges & 2/3-point compression latches

DOT light package, master-lock system, weld-on receiver hitch

(6) recessed cargo tie-downs, dual-seal weather-sealed compartments

Prime painted & undercoated

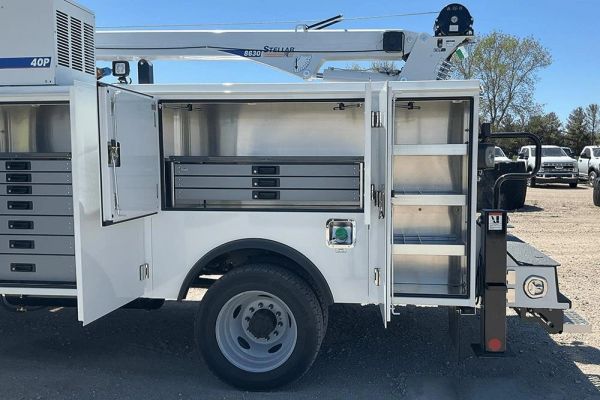

Compartment Storage:

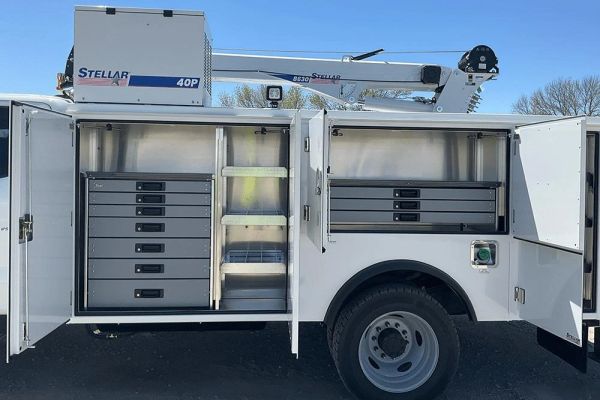

Heavy-duty aluminum bale-style pull handle drawer sets (Streetside 1st Vertical & Horizontal) w/ light bars

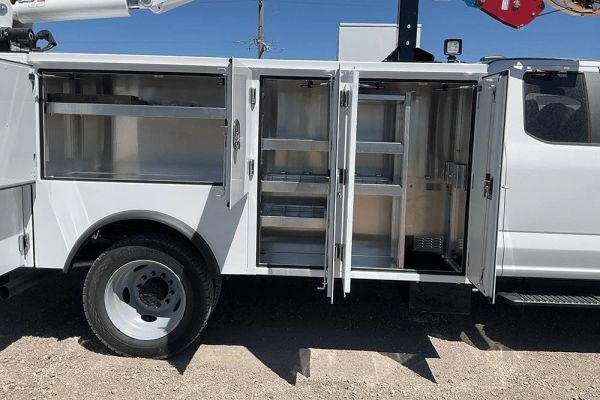

Strut-mounted shelving throughout (Streetside Rear, Curbside 1st/2nd Vertical, Curbside Horizontal)

2-bottle oxy-acet holder (Curbside 1st Vertical)

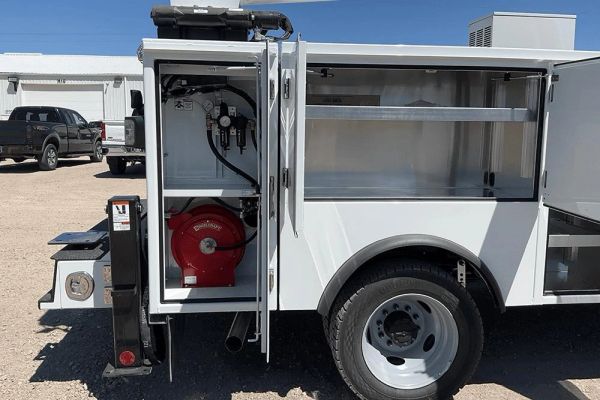

1/2" x 50' hose reel w/ roller guide, rear exit (Curbside Rear)

Body Options Installed:

Adhesive black rock guard kit

Black grab handle, Stellar mud flaps

Aluminum tailgate, 12" tall, painted black

Adjustable boom support, painted roller rest

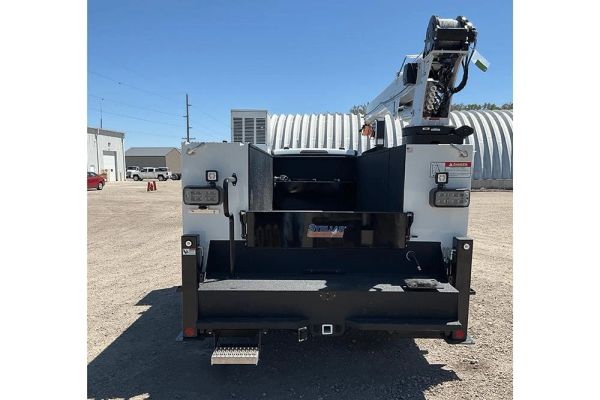

Slide-out step & vise mounting plate for work bench bumper

Hydraulic stabilizer assembly (out/down), painted black

LED flood light kit (4 lights) + LED compartment lighting

Stellar rear taillights w/ integrated strobes, ID bar, reflectors & flood light

Truck upfitter switch control package

20-gallon bulkhead-mounted hydraulic reservoir, painted black

Spray-on bed liner — load bed & work bench bumper, black

Body painted Stellar White (Axalta 350407EX)

Backup camera cover plate

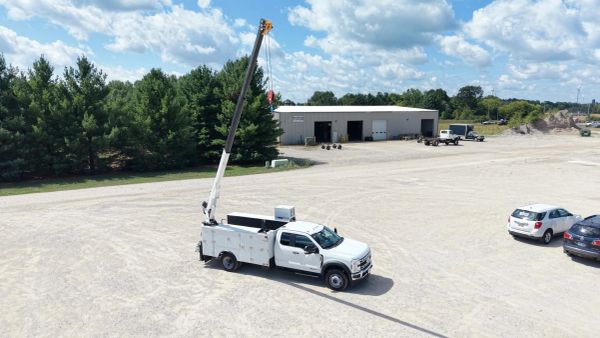

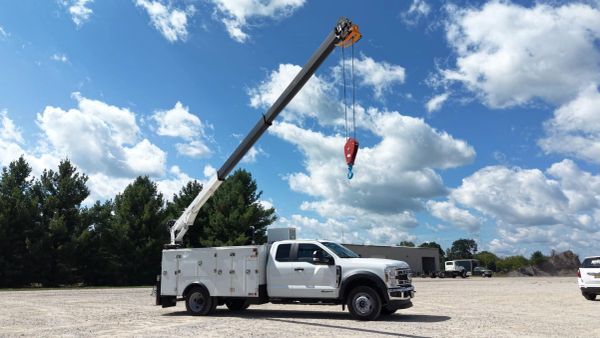

Stellar 8630 Hydraulic Service Crane

Crane Rating: 53,100 ft-lb

Max Lifting Capacity: 8,600 lbs @ 6'2"

Max Horizontal Reach: 29'8" from crane CL

Max Vertical Lift: 31'6" from crane base

Boom Elevation: -10° to +80°

CDTpro™ Control System w/ Range Finder

40P Air Compressor System

Output: 40 CFM @ 100 psi

Max Pressure: 150 psi

2-cylinder, single-stage

12VDC @ 20 amp electrical control

25-gallon air tank kit (10-gal + 15-gal)

FLR system installed (filter/lubricator/regulator, 1 outlet)

If you've been running underbuilt service trucks or cobbling together a setup that almost works, this is what a properly spec'd mechanics truck looks like.

Multiple units in stock means you can put more than one to work without waiting on a build slot.

Available for inspection at Smith Truck Body in Rosebush, Michigan — the same professional upfit shop that builds and services vocational trucks daily. Stop in, call, or message to get a unit reserved.
