2026 Kenworth T380 Mechanics Truck – Stellar TMAX 2-14

---

AVAILABLE NOW

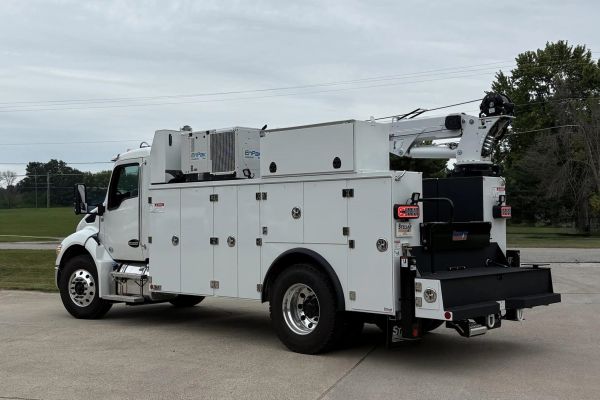

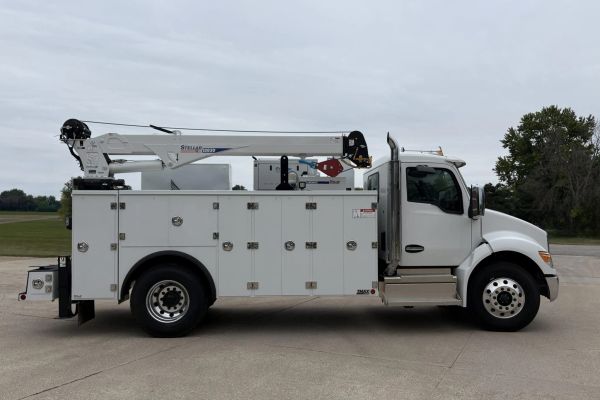

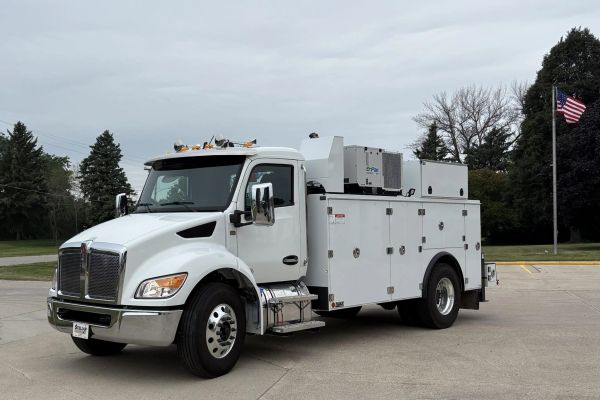

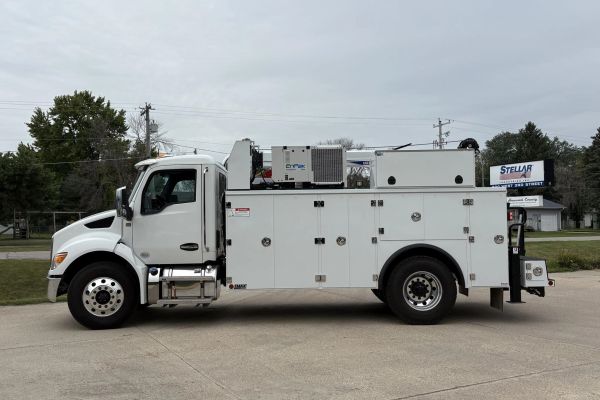

Heavy-duty, fully equipped mechanics and lube service truck built on a 33,000# GVW Kenworth T380 chassis. This truck is equipped with a 14' Stellar TMAX 2-14 aluminum mechanics body, Stellar 12630 hydraulic crane, EnPak power system, hydraulic outriggers, extensive compartment storage, and a complete Lubemate LM200 fluid service system.

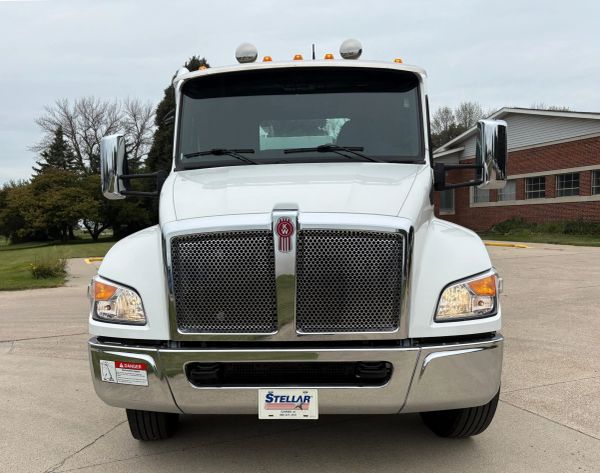

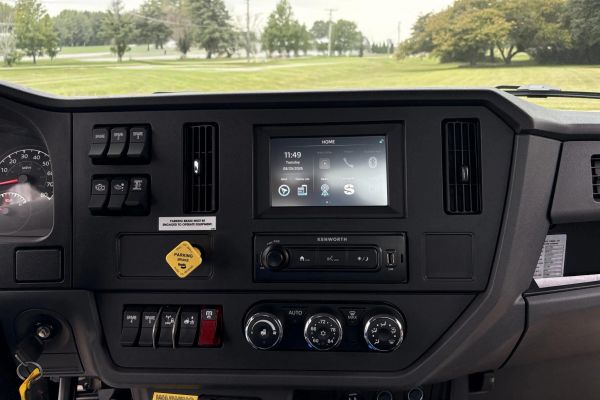

CHASSIS – 2026 KENWORTH T380

PACCAR PX-9 diesel, 330 HP

Allison 3500 automatic transmission

33,000# GVW

124" CA / 192" wheelbase

4x2 configuration

Air brakes

56-gallon LH fuel tank

11R22.5 tires

Horizontal exhaust with vertical outlet

Air conditioning

Air suspension driver's seat

BODY – 2026 STELLAR TMAX 2-14 ALUMINUM

14' aluminum mechanics body

Aluminum side packs and doors

Steel reinforced crane compartment

60" tall compartments

22" deep side packs

Torsion-box understructure with isolated crane compartment

Flush front bulkhead

Master-Lock compartment locking system

Exterior LED DOT lighting

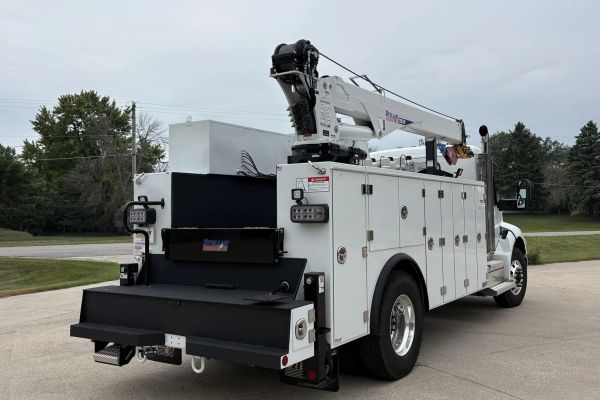

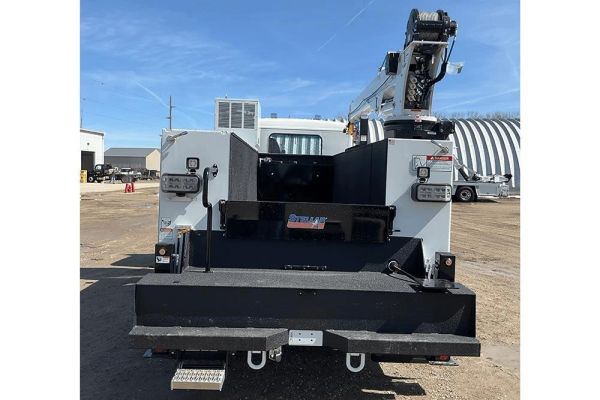

168" long rear workbench bumper

21" deep workbench bumper with thru compartment

Six recessed cargo tie-downs

12" fold-down aluminum tailgate

Stainless steel compression latches and billet-style hinges

Dual-seal automotive-style compartment weather seals

Pintle hitch mount

Undercoated body

Black spray-on bedliner in load bed and workbench bumper

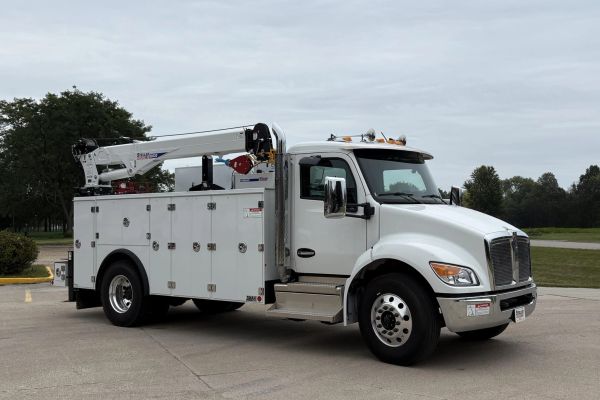

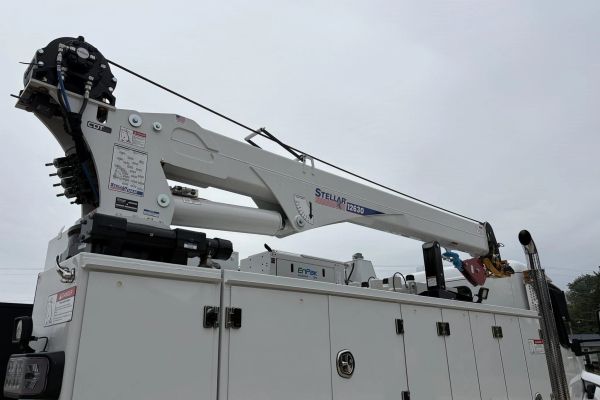

STELLAR 12630 HYDRAULIC CRANE

77,800 ft-lb crane rating

12,000-lb maximum lifting capacity at 6'5"

30' maximum horizontal reach

31'9" maximum vertical lift

-10° to +80° boom elevation

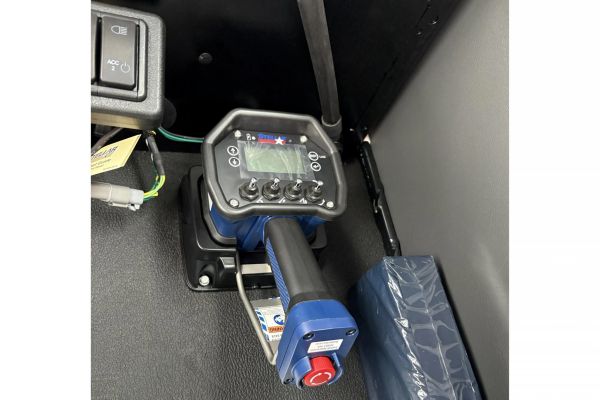

CDTpro remote control system with Range Finder

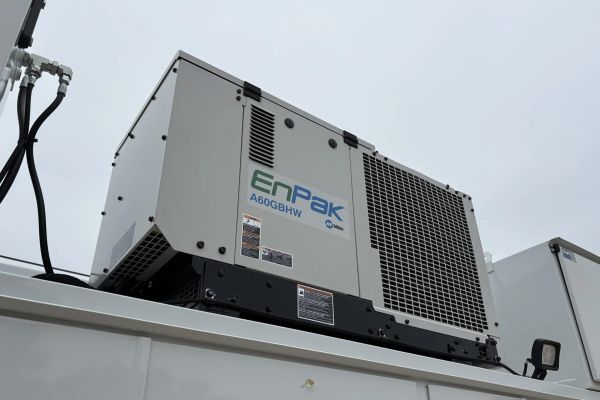

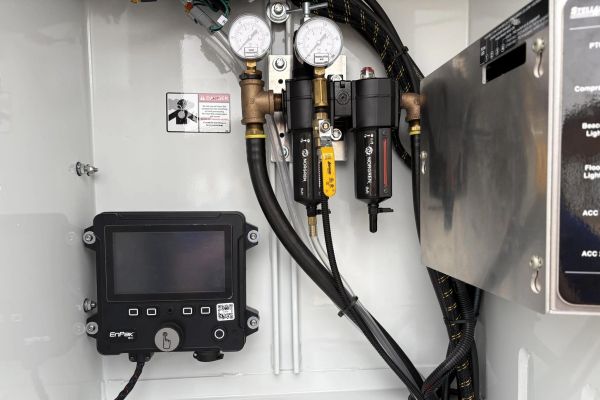

POWER SYSTEM – STELLAR / MILLER ENPAK

Integrated auxiliary power system designed to reduce truck engine idle time.

Air compressor

Generator

Multiprocess welder

Battery charge and crank-assist capability

Automatic engine start/stop

Provides power for the Stellar crane, air tools, welding, and jobsite electrical needs

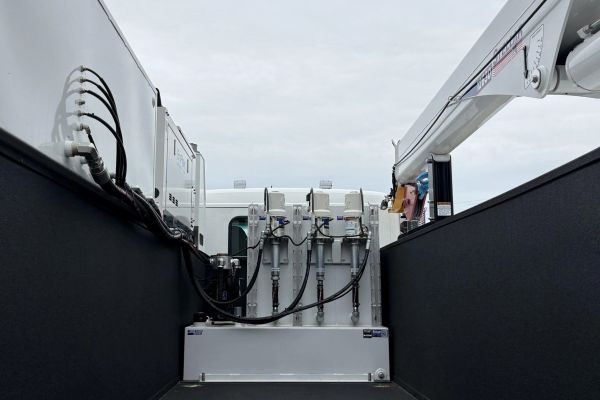

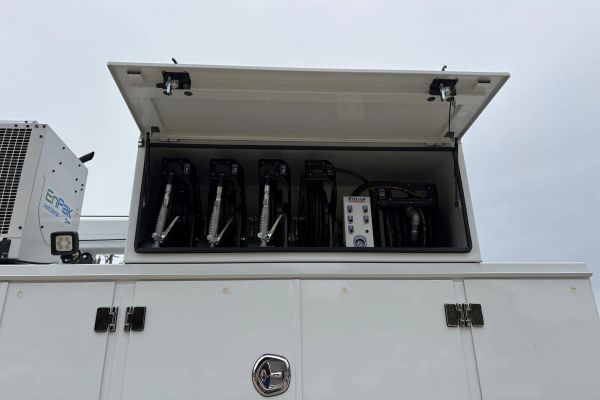

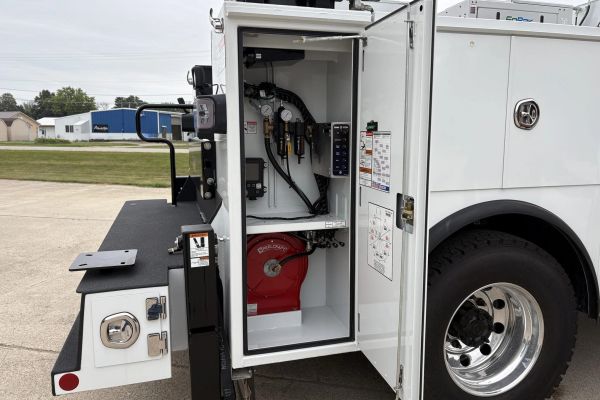

LUBEMATE LM200 LUBE SYSTEM

Lubemate LM200 system

120-lb grease kit with dedicated cabinet

Three 40-gallon fresh oil tanks

One 80-gallon salvage oil tank

Graco fluid pumps and hose reels

Pneumatic control panel

Integrated fluid dispensing system for mobile maintenance and field service work

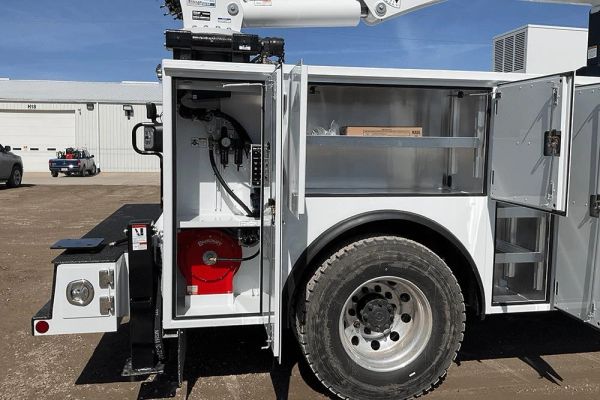

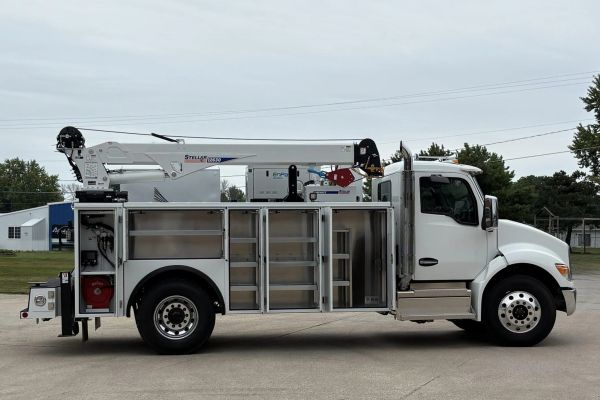

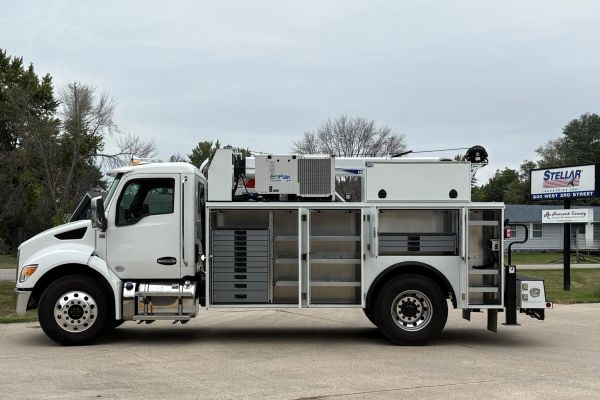

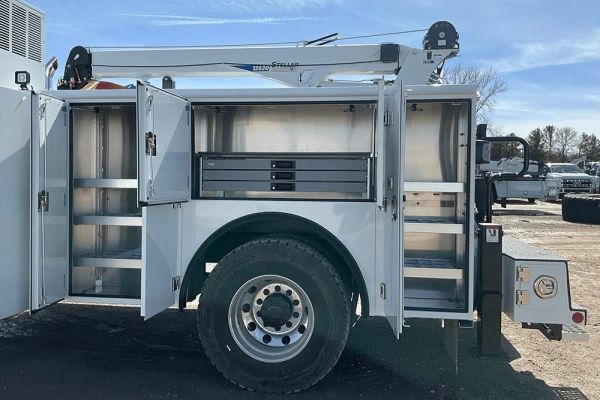

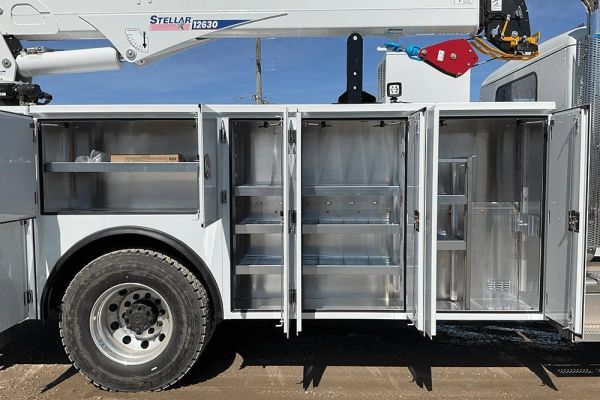

BODY EQUIPMENT & STORAGE

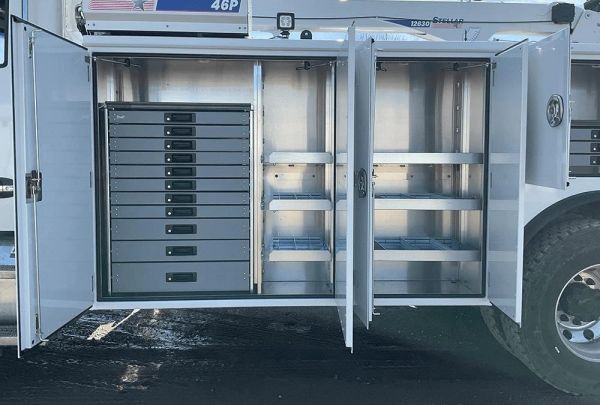

Heavy-duty aluminum drawer packages

Multiple adjustable shelves and divider systems

Oxy-acetylene two-bottle storage

1/2" x 50' rear-exit air hose reel

Adjustable crane boom support

Rear roller rest

Rear grab handle

Receiver-style vise mounting plate

Slide-out rear step

Hydraulic-out / hydraulic-down stabilizers

LIGHTING & SAFETY

LED compartment lighting

Four LED exterior flood/work lights

Backup alarm

Fire extinguisher and roadside reflector kit

HYDRAULICS

Hot-shift PTO

Tandem-section hydraulic pump for crane and compressor operation

35-gallon bulkhead-mounted hydraulic reservoir

This truck is set up for serious field service. With the 12630 crane, EnPak power system, onboard air and welding capability, and full Lubemate fluid service package, it is ideal for heavy equipment dealers, construction fleets, aggregate operations, municipalities, mining, forestry, agriculture, and mobile fleet maintenance.
